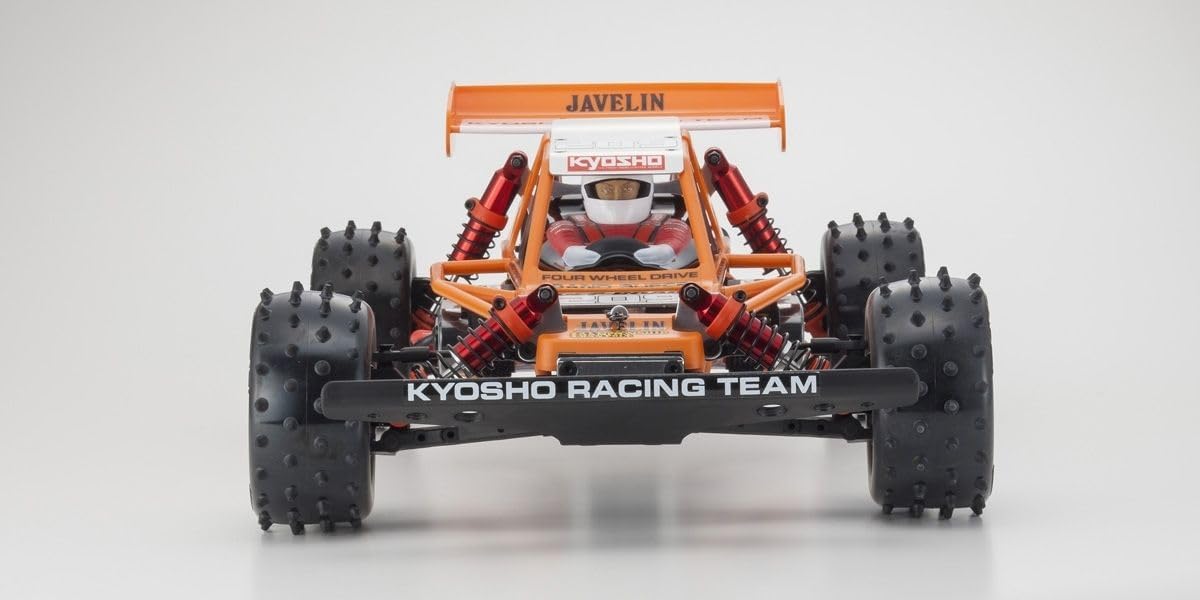

JAVELIN 1/10 EP 4WD Buggy KIT 30618C
US$156.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by tgwoodworks.net
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$156.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by tgwoodworks.net
Free 30-day returns Details
Product details
| Management number | 216428621 | Release Date | 2026/04/19 | List Price | US$156.00 | Model Number | 216428621 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Each part has been upgraded to correspond with modern power sources while retaining Javelin’s unique original design.
- New updated heavy duty aluminum inner roll bar for increased durability.
- The new wing stay is compatible with the Optima(requires some cutting of the PC body).
- Rear wing has been changed to chassis mounting to generate high downforce. The pedestal parts have been included with insert nuts to keep the wing securely fixed. Incorporation of insert nuts into the pedestals delivers even more secure mounting.
- Just like the original Javelin, white, pastel green and fluorescent yellow colored roll cage bodies and wings are available. Red and black colors are on plan.
- The aluminum plate on the front area of the roll cage body is now securely fixed with screws adding rigidity to the body.
- Simple yet high rigidity aluminum backbone type chassis.
- Two types of drive system can be selected. The 4WD chain system with sealed compartment that took the world by storm, or the 4WD belt system that was later released as an option.
- FRP radio plate is suitable for ESC’s of any brand.
- One-piece wheels replicate the original stylish design while delivering a reduction in weight.
- Full ball bearing specifications use 18 ball bearings. (chain drive system uses 16).
- hex heads ensure easy use and fastening security.
- Includes separate helmet and polycarbonate body.
- Hook and loop fastener battery stay (including battery straps printed with Kyosho logo) is compatible with various batteries and allows easy installation and removal.
- Equipped with metallic counter gear.
- ■Length 403mm
- ■Width 240mm
- ■Height 130mm
- ■Wheelbase 260mm
- ■Front Tread 204mm
- ■Rear Tread 204mm
- ■Weight 1,700g (approx.)
- ■Tires (F & R) φ86×40mm
- ■Motor 540 Class size（sold separately）
- ■Gear Ratio 9.24：1
- Assembled some parts kit chassis (gear box, oil shock are pre assembled)
- Body frame
- Decals
- L-shape hexagonal wrench
- Cross wrench
- Shock wrench
- Shock oil
- Grease
- 2 Channel R/C System (1 x servo, 1 x ESC)
- 540 Motor (20T – 27T recommended) No.82140 EP Starter Pack (KT-321P, KR-331, VORTEX WP45A, G2X Motor)
- Battery for motor (7.2V NiMH or Li-Po battery)
- Charger for motor battery (stable 12V power supply required if using DC)
- Paint for body
- Batteries for transmitter
- Tools (maybe required: 1.5 / 2.0 / 3.0 hexagonal wrench driver, needle nose pliers, wire cutters, box cutter, Philips screwdriver for replacing servo horn)
| Color | White, Pastel Green, Fluorescent Yellow |
|---|---|
| Scale | 1:10 Scale |
| Theme | Car |
| Brand Name | Kyosho |
| Model Name | 30618C |
| Model Year | 1986 |
| Manufacturer | KYOSHO |
| Model Number | 30618C |
| Power Source | Battery Powered |
| Material Type | Aluminum |
| Operation Mode | Remote Control |
| Item Dimensions | 16.14 x 9.45 x 5.12 inches |
| Number of Items | 1 |
| Additional Features | Portable |
| Battery Description | Nickel-Metal Hydride or Lithium Polymer |
| Is Assembly Required | No |
| Are Batteries Required | Yes |
| Batteries are Included | No |
| Manufacturer Part Number | 30618C |
| Global Trade Identification Number | 04548565465866 |
