Chelhead 12 Gang Switch Panel APP Control RGB Dimmable Strobe Function Waterproof Control Cuircuit Box 80A Breaker Compatible with Truck SUV Offroad Marine Jeep, 2 Year Warranty
Product details
| Management number | 221118634 | Release Date | 2026/05/03 | List Price | US$76.00 | Model Number | 221118634 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- DUAL CONTROLLING WAY: There are 2 ways of controlling for 12V switch panel, control with the switch panel & APP Controlled. Both methods work in sync.Offers a perfect solution to clean up all wiring harness and add a single panel to control everything.

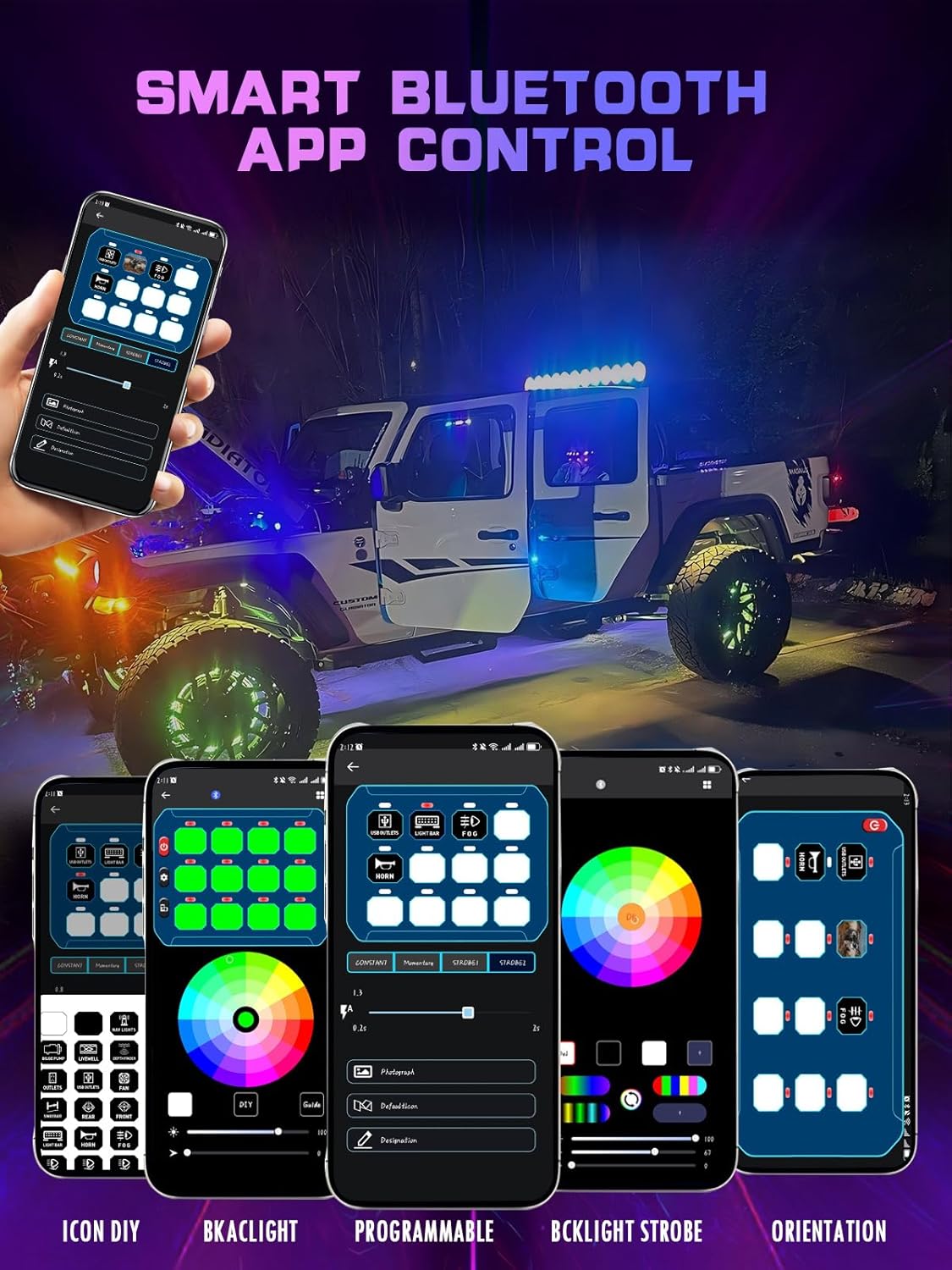

- PROGRAMMABLE MOMENTARY BUTTON: switch panel buttons/switches can be configured/programmed with a mobile app. Can be set as a momentary switch, strobe switch and on switch
- TECH SPECS: Max current per channel: 30A (4 PCS ), 2 channel 20A, 2 Channel 15A, 4 Channel 10A. Include 80A re-settable relay fuse, Input Voltage: 12-24 volts.Low voltage auto-shutoff protection
- CUSTOMIZABLE SWITCH PANEL: Customize your own RGB backlight, DIY your button with icons, images, or text.
- WIDE APPLICATION: Compatible with most 12V offroad lighting accessories such as light bars, cube lights, etc.Enjoy additional compatibility with 12v accessories like stereos, air rides, and so much more
| Model | CHEL-SP1-RGB-12G-APP |
|---|---|
| Terminal | Screw |
| Brand Name | Chelhead |
| Unit Count | 1.0 Count |
| Part Number | CHEL-SP1-RGB-12G-APP |
| Switch Type | Push Button |
| Circuit Type | 12-way |
| Contact Type | Normally Open |
| Control Type | Application, Physical Buttons |
| Manufacturer | Samlight |
| Actuator Type | Push Button |
| Material Type | Aluminum |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Control Method | App, Touch |
| Current Rating | 80 Amps |
| Operation Mode | ON-OFF |
| Controller Type | APP, Push Button |
| Item Dimensions | 5 x 3.5 x 0.5 inches |
| Number of Items | 1 |
| Contact Material | Aluminum |
| Operating Voltage | 12 Volts (DC) |
| Specification Met | ISO 9001 |
| Compatible Devices | 12V offroad lighting accessories, 12V stereos, 12V air rides |

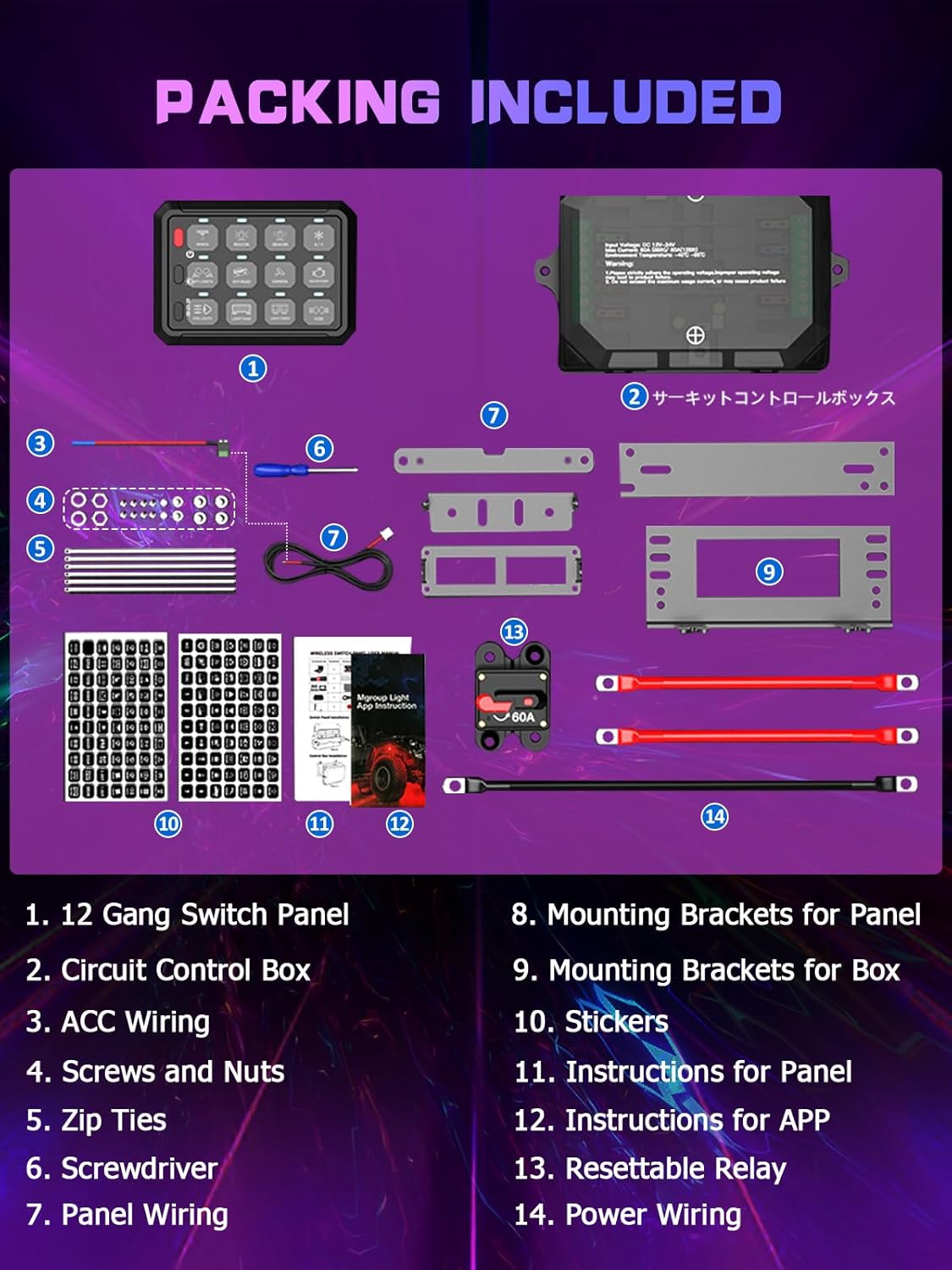

| Included Components | 12 Gang Bluetooth Switch Panel, Control Box, Wiring, Brackets and Instructions |
| Number of Positions | 12 |
| Connectivity Protocol | Bluetooth |
| Upper Temperature Rating | 85 Degrees Celsius |
| Compatible with Vehicle Type | Truck, SUV, Offroad, Marine, Jeep |
| International Protection Rating | IP65 |
